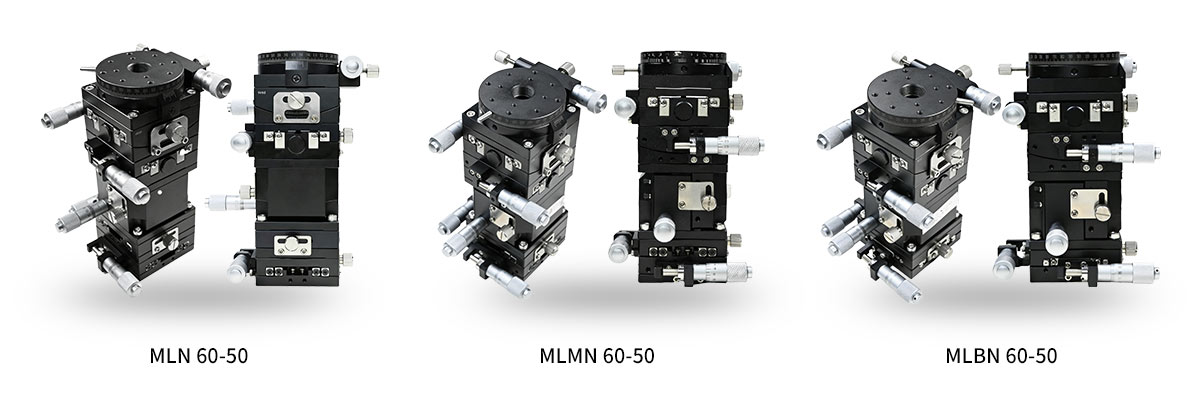

本系列精密六轴位移平台采用铝合金黑色阳极氧化材质，轻量化与高刚性兼备，表面耐磨耐腐蚀，适配工业长期作业环境。模块化多轴集成设计，可实现 XY 轴直线位移、Z 轴升降及 α/β 轴小角度微调，MLMN 系列更搭载 θ 轴 360° 粗调与 ±5° 精调功能，满足全方位精密定位需求。标准化台面尺寸搭配灵活中心点高度选项，负载能力覆盖 2–3kgf，行程与精度分级匹配，安装便捷、操作直观，是显微镜、精密检测及自动化装置的理想调节解决方案。
|
型号 |
材质 |
台面大小 (mm) |
构成部件 |
行程 |
负载 (kgf) |
||||||
|
代码 |
台面大小 |
中心点高度 |
XY轴 |
Z轴 |
α轴 (上层) |
β轴 (下层) |
θ轴 |
||||
|
MLN |
40 |
40 |
铝合金黑色阳极 |
40 × 40 |
±6.5mm |
6mm |
±7° |
±4° |
粗调 360°，精调 ±5° |
2 |
|
|
MLN |
60 |
±4° |
|||||||||
|
MLN |
60 |
50 |
60 × 60 |
MPB60+MLZ60+MPWG60-50+MPR60-R |
10mm |
±4° |
±4° |
3 |
|||
|
MLN |
75 |
MPB60+MLZ60+MPWG60-75+MPR60-R |
±3° |
||||||||
|
MLN |
100 |
MPB60+MLZ60+MPWG60-100+MPR60-R |
±3° |
±2.5° |
|||||||
|
MLMN |
40 |
40 |
40 × 40 |
6mm |
±7° |
±4° |
2 |
||||
|
MLMN |
60 |
±4° |
|||||||||
|
MLMN |
60 |
50 |
60 × 60 |
MPMB60+MLZ60+MPWG60-50+MPR60-R |
10mm |
±4° |
±4° |
3 |
|||
|
MLMN |
75 |
MPMB60+MLZ60+MPWG60-75+MPR60-R |
±3° |
||||||||
|
MLMN |
100 |
MPMB60+MLZ60+MPWG60-100+MPR60-R |
±3° |
±2.5° |
|||||||
|
MLBN |
40 |
40 |
40 × 40 |
6mm |
±7° |
±4° |
2 |
||||
|
MLBN |
60 |
MPBB40+MLZ40+MPWG40-60+MPR40-R |
±4° |
||||||||
|
MLBN |
60 |
50 |
60 × 60 |
MPBB60+MLZ60+MPWG60-50+MPR60-R |
10mm |
±4° |
±4° |
3 |
|||
|
MLBN |
75 |
MPBB60+MLZ40+MPWG60-75+MPR60-R |
±3° |
||||||||
|
MLBN |
100 |
MPBB60+MLZ60+MPWG60-100+MPR60-R |
±3° |
±2.5° |
|||||||
